Description

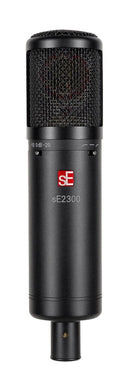

Suitable for vocals, voiceovers, and instrumental applications, the sE Electronics sE2300 is a hand-crafted condenser microphone bundled together with an isolation pack. The microphone takes the same design as the sE2200 and adds a switch to change polar patterns for added versatility. You'll find the same capsule design, custom-built output transformer, and class-A circuit topologies.
Product Highlights
- 2 x 1" Gold Sputtered Diaphragms
- Externally-Polarized Condenser Capsule
- Cardioid Polar Pattern
- Custom-Built Transformer
- Class-A Circuit Topologies
- Pad Switch: -10 and -20 dB
- Low-Cut Filters: 80 and 160 Hz
- All-Metal Chassis
- Includes Shockmount
- Includes Metal Pop Filter
Tech Specs
| Capsule Type | Hand-crafted 1" True Condenser |
| Polar Pattern | Cardioid, Omni-directional |
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 24 mV/Pa (-32.5 dBV) |
| Max SPL | 126 / 136 / 146 dB (0/10/20 dB pad) (0.5% THD @ 1kHz) |
| Equivalent noise level | 9 dB(A) |
| Dynamic range | 117 / 127 / 137 dB (0/10/20 dB Attentuation pad) |
| Signal to Noise Ratio | 85 dB |
| Low-cut filter: | 80 / 160 Hz, 6 dB/Oct, switchable |
| Attenuation Pad | 10 / 20 dB, switchable |
| Powering | 48 Volts according to IEC 61938 |
| Electrical Impedance | 40 Ohms |
| Recommended load impedance | 1 kOhms |
| >1k Ohms | Cardioid: 23.7 mV/Pa |
| Current consumption | 4.8 mA |
| Connectivity | 3-pin male XLR connector |
| Dimensions | Diameter: 51mm (2.01 in), Length 215mm (8.46 in) |
| Weight | 611 g (21.55 oz.) |
