Description

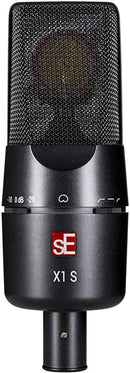

The SE Electronics X1 S is a large-diaphragm cardioid condenser microphone designed for versatile, full-range vocal and instrument recording in commercial facilities, project studios, home setups, and mobile rigs. The handcrafted gold-sputtered capsule features a pressure-gradient design for directional focus and rejection of off-axis sounds. It utilizes a gold-plated XLR 3-pin jack and requires 48V phantom power.
Product Highlights
- Cardioid Polar Pattern
- Pressure-Gradient Design
- Handcrafted Gold-Sputtered Capsule
- 20 Hz to 20 kHz Frequency Response
- Switchable -10 dB or -20 dB Pad
- Selectable 80 Hz or 160 Hz Low-Cut Filter
- High Maximum SPL
- Metal Housing
- Gold-Plated XLR Connector
- Includes Mic Clip
Tech Specs
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Transducer | Condenser |
| Diaphragm | 1" / 25.40 mm |
| Tube | No |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| Signal to Noise Ratio | 85 dB |
| Equivalent Noise Level | 9 dB A-Weighted |
| Maximum SPL | 140 dB SPL |
| Pad | -10 dB -20 dB |
| Impedance | 125 Ohms |
| Load Impedance | 1 kOhms |
| Sensitivity | 30 mV/Pa |
| Connectivity | 3-pin male XLR connector |
| Low-Cut Filter | 6 dB/Octave @ 80 Hz 6 dB/Octave @ 160 Hz |
| Output Connectors | 1 x 3-Pin XLR |
| Operating Current Consumption | 6 mA |
| Operating Voltage | 48 V |
| Length | 6.65" / 169 mm |
| Diameter | 2.28" / 58 mm |
| Weight | 15.70 oz / 445 g |
